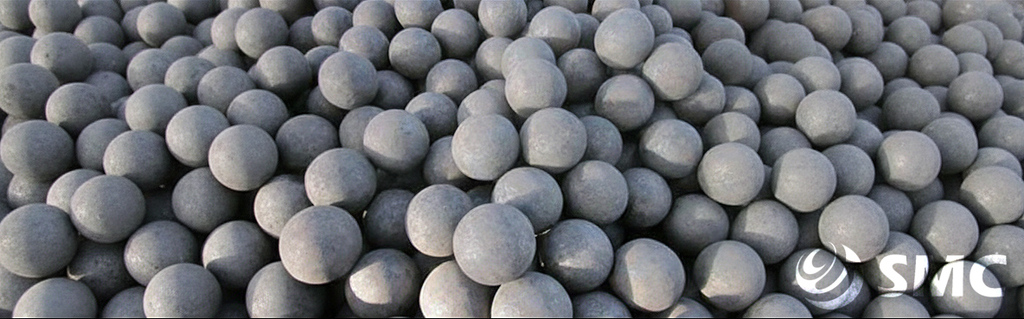

Hyper Steel Grinding media balls

We provide our clients with a superior quality range of Hyper Steel Grinding Media Balls. Fabricated using high quality raw material such as metals & alloys and advanced machinery, these products ensure durability to the end user. To cater to the variegated application requirements of engineering industries, we make these Hyper Grinding Media Balls available in various sizes and technical specifications. These products have low abrasion.


Specifications:

  • Hardness: When tested in accordance with IS 1500/1983 the hardness at any point across the section of the ball is more than 375 BHN.
  • Hyper Steel Grinding Media Balls and Cylpebs as per IS 6079-1989.
  • Chemical composition: The chemical composition of the Grinding Media will be as per IS 6079-1989.
  • Standard size of Grinding Media: Balls diameter (mm)-125, 100, 90 , 80, 75, 70, 65, 60, 50, 40, 30, 25, 20, 17, 15
  • Cylpebs (mm)- 45x45, 40x40, 35x35, 30x30, 25x25, 22x22, 19x19, 17x17, 15x15
Metal
Grade 1

(For size 60 mm & above)

Grade 2
(For size below 60 mm)
Manganese
1.20-1.50
1.20 -1.50
Silicon
1.00 Max.
1.00 Max.
Carbon
1.25-1.50
1.60-1.90
Chromium
1.50-2.00
1.50-2.00
Sulphur
0.06 Max.
0.06 Max.
Phosphorus
0.06 Max.
0.06 Max.

Tolerance on size: Variation on size shall not exceed the following limits:

Shape and size

Tolerance (mm)
(3) Cylpebs for all sizes
+/- 1.50
(1) Balls for sizes 60 mm & above
+/- 2.50
(2) Balls for sizes 30 to 50 mm & below
+/- 2.00
(2) Balls for sizes
+/- 1.50
Looking for grinding media for your next project?
