Hyper and Hi-Chrome Steel Cylpebs

Solution for Industries

Hyper and Hi-Chrome Steel Cylpebs

Item Code: IS6079-1989

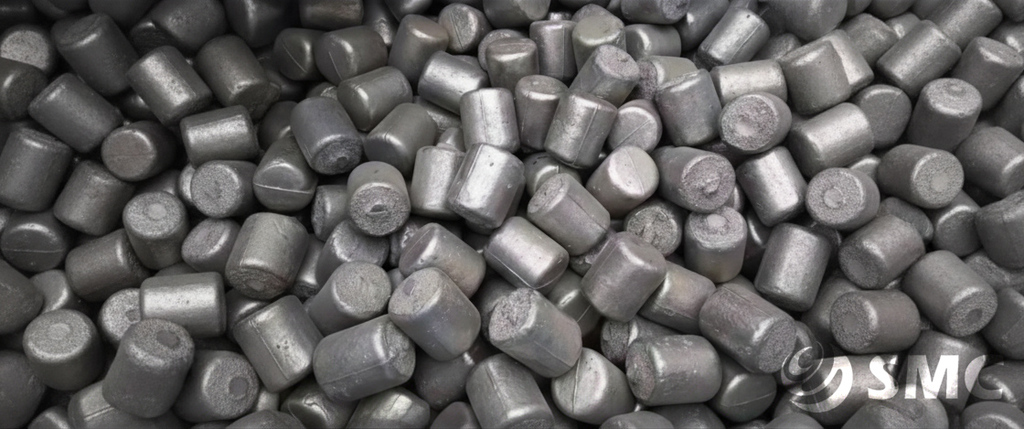

As per the requirements of clients, they can avail from us a quality range of Hyper and Hi Chrome Steel Cylpebs in various diameters and technical specifications. These Grinding Media Balls and Cyplebs are widely utilized in grinding and milling applications.


Specifications:

  • Microstructure: Microstructure is free from continuous carbide network
  • Chemical composition: The chemical composition of the Grinding Media is in accordance with IS 6079-1989
  • Heat treatment: The Grinding Media is heat treated to obtain the required hardness and microstructure
  • Cylpebs (mm) - 45x45, 40x40, 35 x 35, 25x25, 22x22, 19x19
  • Hardness: When tested in accordance with IS 1500/1983, the hardness is found to be more than 375 BHN


Metal
Grade 1

(For size 60 mm & above)

Grade 2
(For size below 60 mm)
Manganese
1.20-1.50
1.20 -1.50
Silicon
1.00 Max.
1.00 Max.
Carbon
1.25-1.50
1.60-1.90
Chromium
1.50-2.00
1.50-2.00
Sulphur
0.06 Max.
0.06 Max.
Phosphorus
0.06 Max.
0.06 Max.

Tolerance on size: Variation on size shall not exceed the following limits:

Shape and Size

Tolerance (mm)
(3)Cylpebs for all sizes
+/- 1.50
(1) Balls for sizes 60 mm & above
+/- 2.50
(2) Balls for sizes 30 to 50 mm & below
+/- 2.00
(2) Balls for sizes
+/- 1.50
